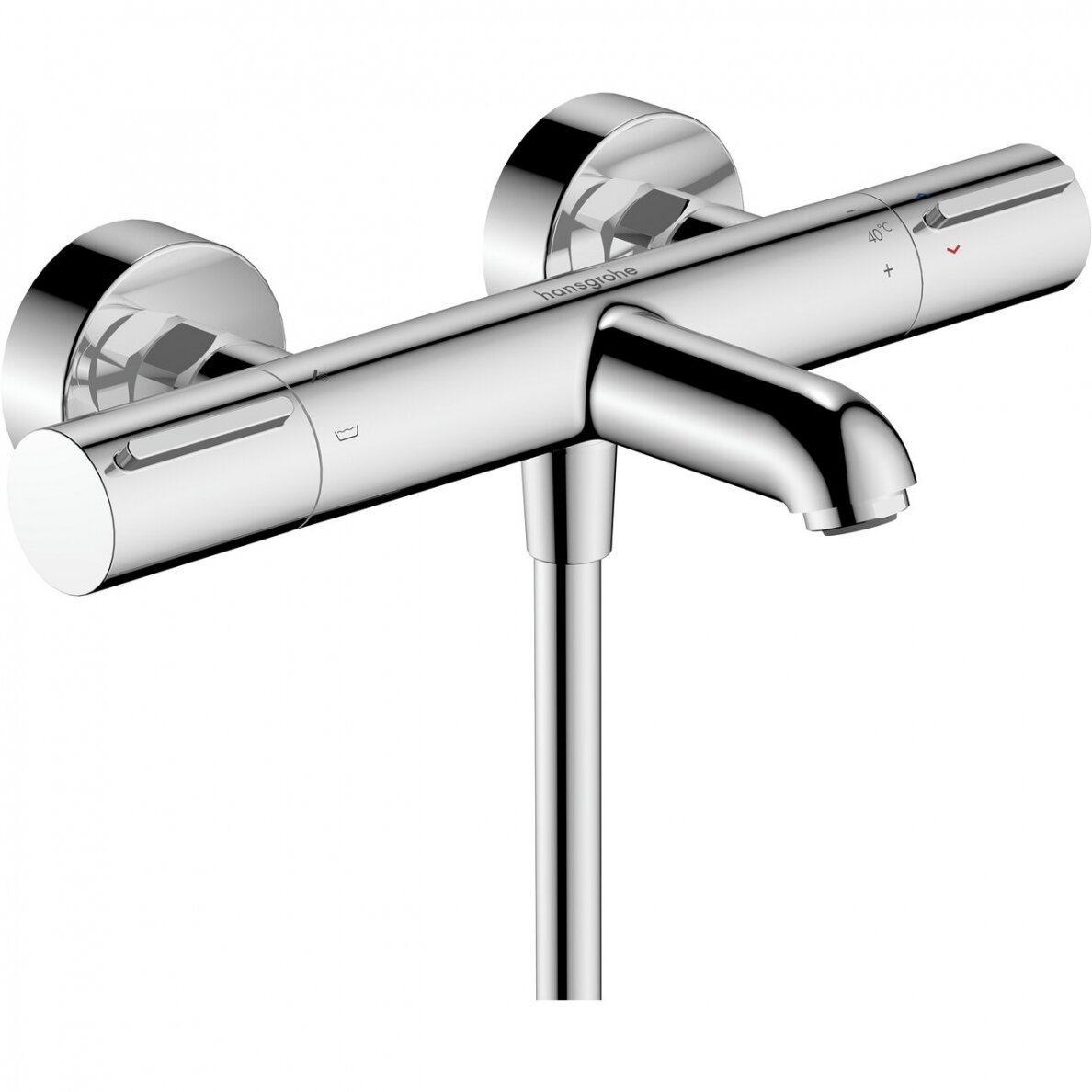

Hansgrohe termostatinis maišytuvas voniai Ecostat Element

Article features

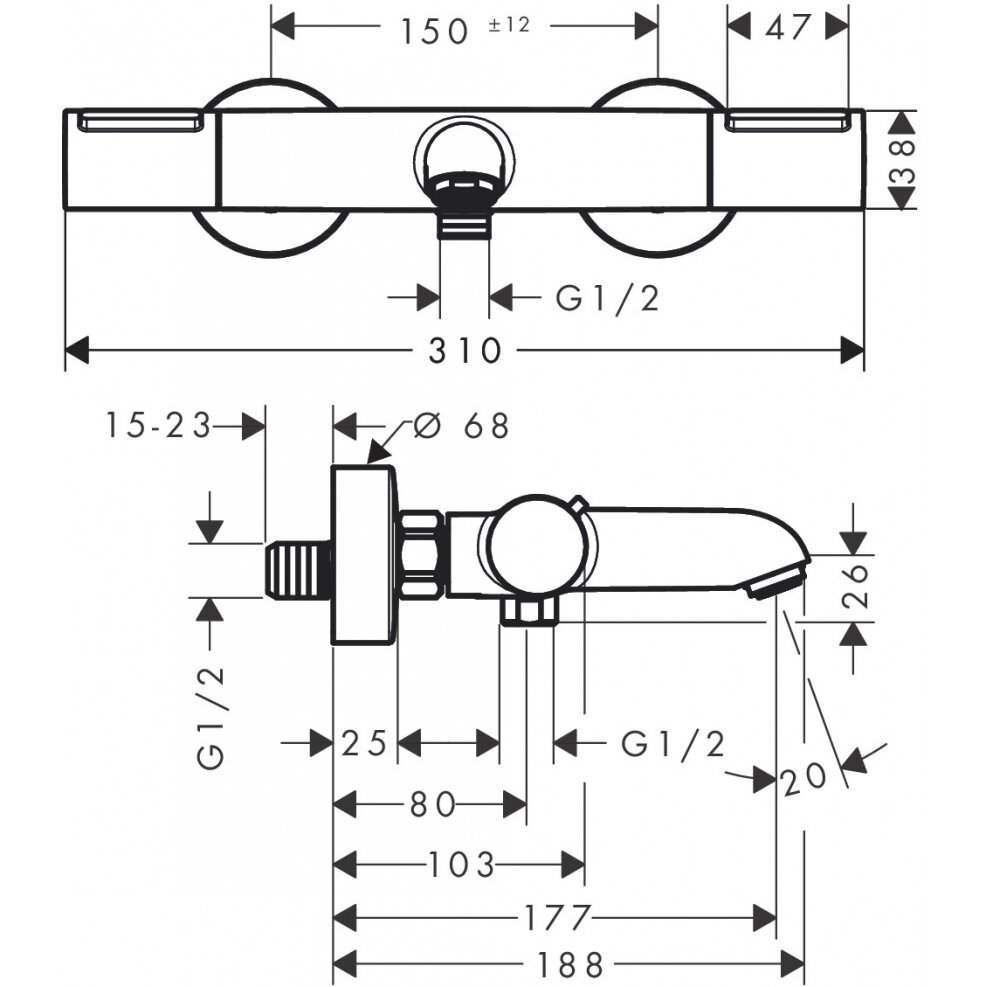

• projection 177 mm
• 2 functions
• temperature and water flow control
• thermostat cartridge, shut-off/ diverter valve
• spray type spout: normal spray
• maximum flow rate at 3 bar: 20 l/min
• flow rate for bath spout at 3 bar: 20 l/min
• flow rate of hand shower at 3 bar: 16 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• Safety stop at 40 °C
• temperature limitation adjustable
• non-return valve
• protected against backflow, according to DIN EN 1717
• with silencer
• material handles: metal
• connection dimension: DN15
• connection type: G ½
• centre distance: 150 ± 12 mm
• dirt filter included
