Viega WC potinkinis rėmas Prevista
-
Kodas: Viega 771980TipasWC potinkinis rėmas
GamintojasViega, Vokietija
-

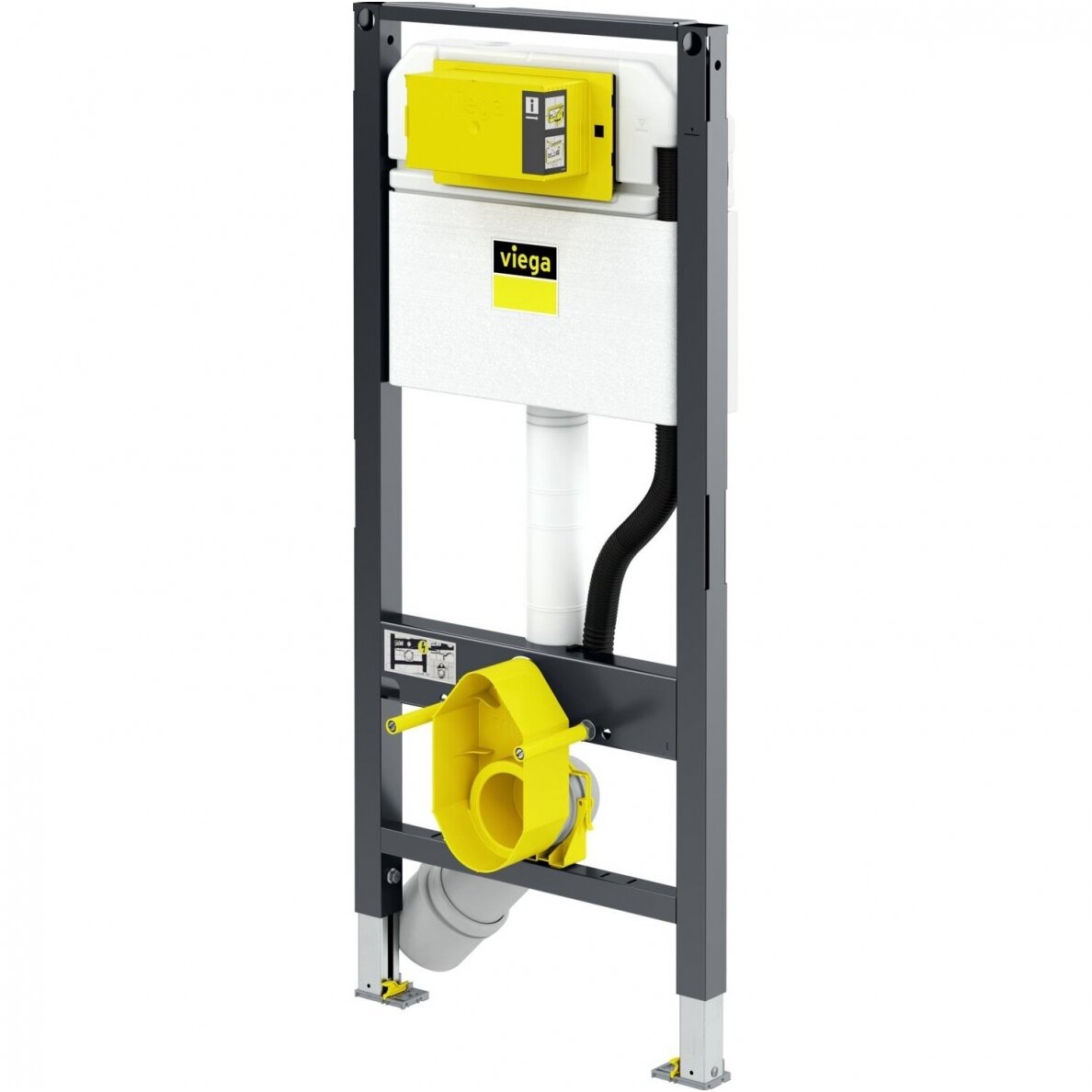

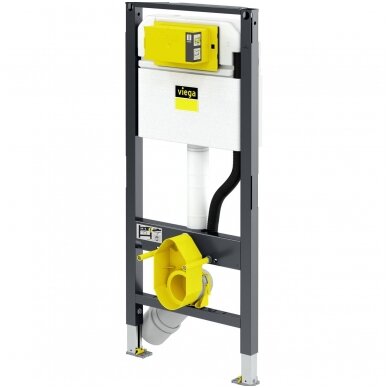

Prevista Dry WC element with shower WC connection 1120 mm
- in addition optional available Prevista Dry support set for WC ceramic with small locating surface (< 17 cm) Model 8570.37
- for pre-wall mounting please order separately: Prevista Dry fixing set Model 8570.36
- steel PE
- compatible with all WC flush plates for Prevista, integration in Prevista Dry Plus, dual flush technology, barrier-free
Components
powder-coated frame (40x40), concealed cistern 3H, flushing throttle, empty pipe for shower WC connection, WC connection fitting, fixing material, extensible lockable feet for height adjustment, water connection R½ at the back and top, WC connection elbow DN90 (depth-adjustable) made of PP, eccentric adapter DN90/100 made of PP
Technical data
Small flush volume factory setting approx. 3 l
Small flush volume setting range approx. 2–4 l
Large flush volume factory setting approx. 6 l
Large flush volume setting range approx. 3.5–7.5 lNote
Flush plates and accessories: product group WC and urinal flush plates for Prevista!
